KMX Air Cushions

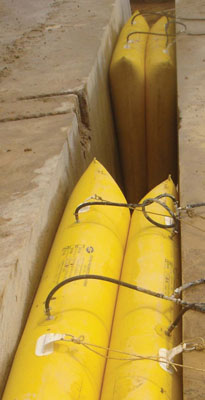

KMX Air Cushions are air inflated rubber cushions designed specifically for splitting and overturning benches in all dimension stone quarries, spreading apart tons of granite, marble and any other type of stone.

The advantages of the KMX Air Cushion are as follows:

  • It uses the normal compressed air available in quarries (4/6 bar)
  • It is not disposable and can be re-used for hundreds of operations
  • It can be repaired in the event of breakage

The following size KMX Air Cushions are available:

  • EV 10S (1400x800mm) - the initial spreading of the bench up to 10-15 cm
  • EV 36S (2000x1600mm) - widening the initial opening of small size benches up to 0.5m
  • EV 54S (2800x1600mm) - widening the initial opening of big size benches up to 0.5m and for overturning benches with a maximum width of up to 2 m
  • EV 62S (3200x1600mm) - widening the initial opening of any size bench up to 0.5m and for overturning benches with a maximum width of up to 3m
