Drill Bits: Taper Button Bits

4 button | 5 button | 6 button | 7 button | 7 button (LS HEX22) | 7 button (LS HEX25) | 8 button

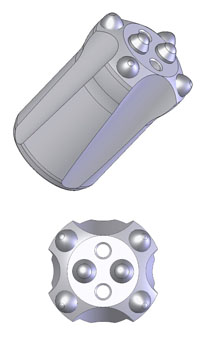

6 BUTTON BITS Full Body Flushing HEX22
view part number key
Diameter Part Number Top Buttons Guage Buttons Flushing Top Holes Side Taper
32 BS32-42-11-77 2 x 8 Con 4 x 7 S/Bal 2 1 11°
34 BS34-42-11-77 2 x 7 Con 4 x 7 S/Bal 2 1 11°
34 BS34-42-11-78 1 x 8 Con 4 x 8 S/Bal 2 1 11°
36 BS36-42-11-78 2 x 7 Con 4 x 8 S/Bal 2 1 11°
